Kugel Komponents’ Under-Dash Brake Pedal Assembly is a reverse-mount, 90-degree hanging-style pedal assembly. The assembly is compact and is ideal for applications where the builder does not want the booster or master cylinder out in the engine compartment, said the company. It also eliminates having a unit under the floor, which aids in exhaust and ground clearance issues, according to Kugel.
The Under-Dash Brake Pedal Assembly is compatible with power or manual brake systems. A small, 180-degree non-power assembly is also offered and both units are available for brake and clutch or brake-only applications. All master cylinders are available as standard fill or remote fill.

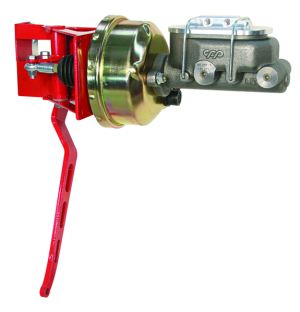

The assembly shown here features a 7-inch power booster (8-inch is also available), Corvette master cylinder, remote conversion lid and the optional slotted pedal arm.
For more information, go to http://www.kugelkomponents.com/.
